Description

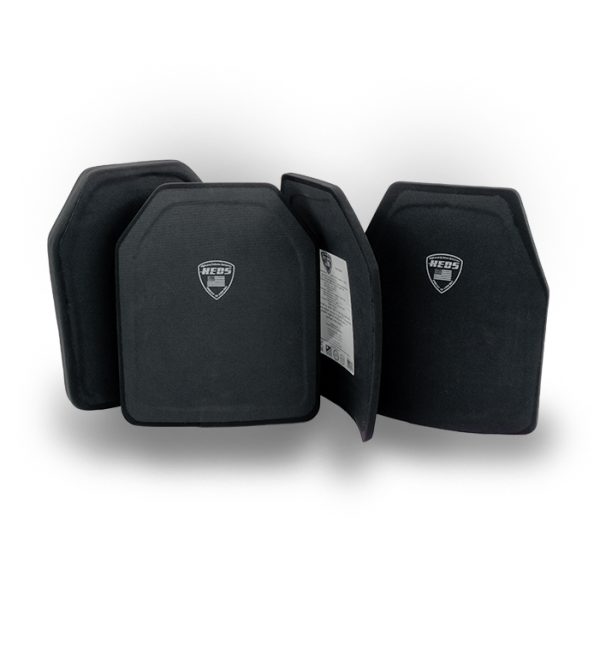

Our ballistic plates stand out as the next generation in protection, setting the benchmark for excellence in the market. Rigorously designed and tested, they offer unparalleled safety and reliability.
Characteristics
| Level | Weight Lbs (10″ x 12″) |
Thickness Inches |
| IV (NIJ 0101.06) Stand Alone |
6.40 Shutter Cut |
1.18 |
| Multi curve plate, Cuts: Shooter & SAPI | ||
| Cuts | Size / Weight | ||
| Shooter | 10″ x 12″ / 6.41 lb |
8″ x 10″ / 4.10 lb |
|
| SAPI | 11″ x 14″ / 8.80 lb |
10.25″ x 13.25″ / 7.60 lb |
9.5″ x 12.5″ / 6.60 lb |
Threat Performance
| Ammunition | No. Impacts * |
| 5.56×45 M193 Max. Vel. 3150 ft/s (960 m/s) |
6 |
| 7.62×39 M67 Max. Vel. 2390 ft/s (728 m/s) |
6 |
| 7.62×51 M80 Max. Vel. 2800 ft/s (853 m/s) |
6 |
| 5.56×45 M855/SS109 Max. Vel. 3150 ft/s (960 m/s) |
6 |
| 7.62×39 M43 Max. Vel. 2390 ft/s (728 m/s) |
6 |
| 7.62×39 API Max. Vel. 2390 ft/s (728 m/s) |
6 |
| 7.62×51 M61 Max. Vel. 2830 ft/s (863 m/s) |
3 |
| 7.62×63 AP M2 Max. Vel. 2900 ft/s (884 m/s) |
1 |
*Number of impacts per plate per ammunition / not combined / number of impacts to be received per plate per ammunition. Refer to NIJ standards
Plates designed to protect against ammunition level NIJ IV (0101.06) or RF3 (0101.07).
