Description

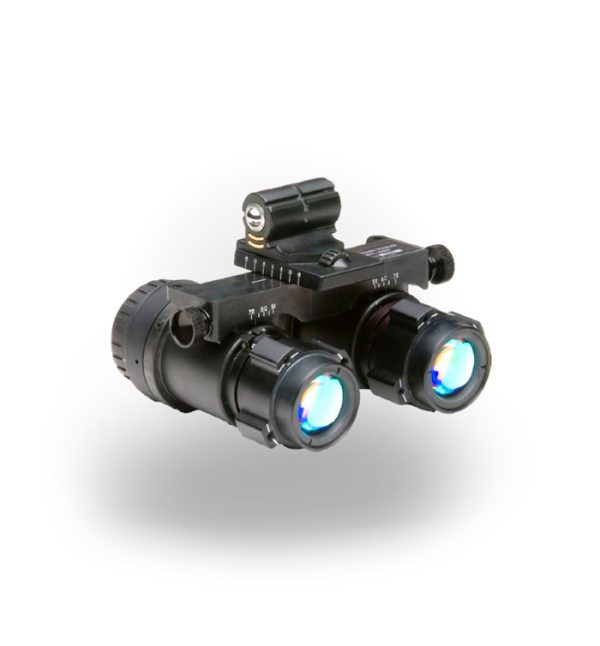

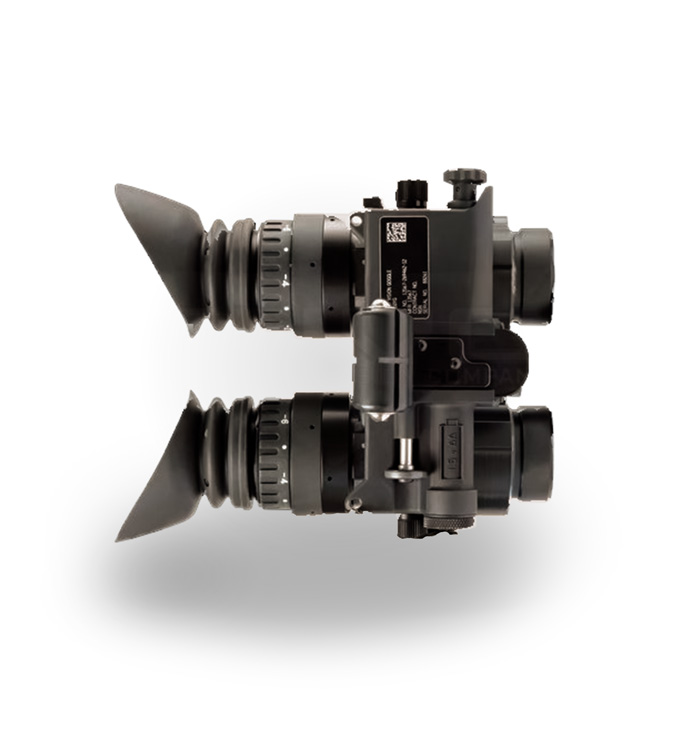

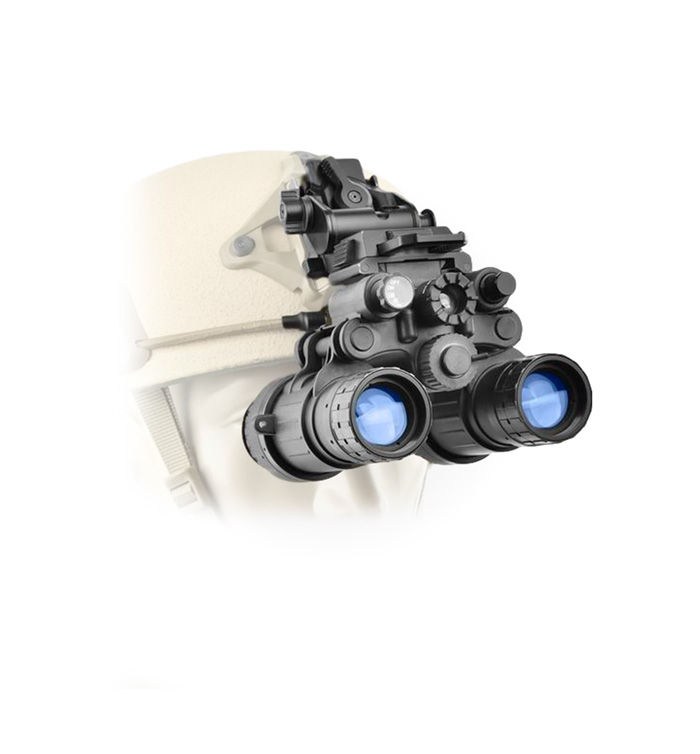

Our H-AN / AVS-9, is the standard night vision binocular of US military forces and of many other countries. This is used by pilots of rotary wing aircrafts in night operations.
Our monocular H-AN / AVS-9 is manufactured with the best and most advanced intensifier tubes and internal components available on the market.
We can build it with different specifications (signal to noise ratio, photocathode, resolution and image intensifier tubes up to 1,600FOM, exportable version).
Our H-AN / AVS-9 has brightness filters to reduce the flash of equipment and instruments of the flight deck.
Our H-AN / AVS-9 is designed to comply with the MIL-STD-810G and PRF-49313 standards.
Features
| Magnification | 1x |
|---|---|
| Viewing Angle | 40° |
| Eye Relief | 25mm |
| Distance Focusing Objective Lens | 27mm |
| Interpapillary Adjustment | 25-72cm |
| Diopter Adjustment | +2 a -6 |
| Battery | 2 x AA |
| Dimensions | 11.5cm x 13cm x 9cm |
| Weight | 540g |
| Temp. Operational | -51° C a +50° C |
Features Intensifier Tube
| Generation | 3 |
|---|---|
| Option | Auto-Gated |
| Signal to Noise | 19-24 (min) |
| Gain | Ajustable |
| Photocathode | 1350 (min) |
| Halo | No less than .85 |
| FOM | 1,400-1,600 max |
| Resolution | 64-72 lp/mm |
