UNI-DIRECTIONAL (UD)

Call for pricing

SKU: 10-40-10-01-000 Categories: , Tag:

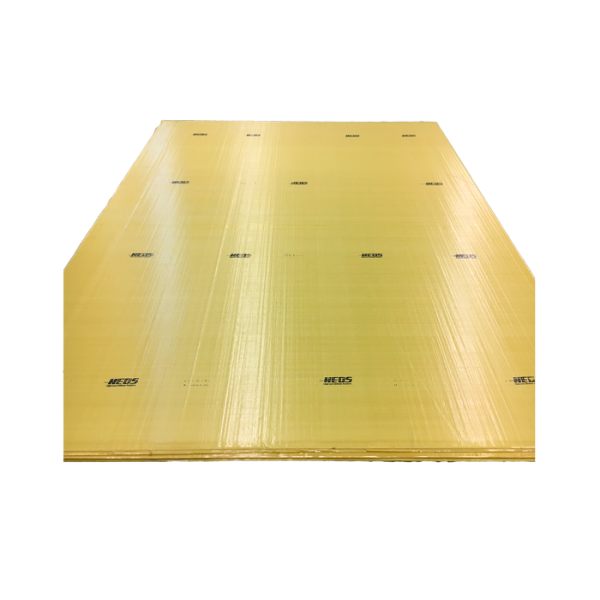

This fabric is composed of aramid yarns arranged uni-directional on a resin film, also forming angles of 90º but superimposed, alternating a horizontal layer, with a vertical layer and so on. They are pressed from two to four layer per fabric.

Call for pricing

Clear
Loading...

Description

This fabric is composed of aramid yarns arranged uni-directional on a resin film, also forming angles of 90º but superimposed, alternating a horizontal layer, with a vertical layer and so on. They are pressed from two to four layer per fabric.



General Features

  • Manufacturer by HEDS.
  • Material rigid UD aramid.
  • Excellent plates for protection.
  • Complies with the NIJ levels IIA, I and IIIA.



Model Size Thickness Weight Protection
Impact Shield Lite 2.00m² 1.60m x 1.25m 3.1mm 18.0Lbs NIJ IIIA-SA
Impact Shield Lite 2.20m² 1.60m x 1.37m 3.1mm 19.8Lbs NIJ IIIA-SA
Impact Shield 9 1.60m x 1.25m 3.5mm 20.3Lbs NIJ IIIA-SA
Impact Shield 11 1.60m x 1.25m 4.3mm 24.8Lbs NIJ IIIA-PLUS SA
Impact Shield Flex 1.60m x 1.25m 3.7mm 17.3Lbs NIJ IIIA-SA
Impact Shield Flex 2 1.60m x 1.375m 3.7mm 19.1Lbs NIJ IIIA-SA

Additional information

ud

Impact Shield 11, Impact Shield 9, Impact Shield Flex, Impact Shield Flex 2, Impact Shield Lite 2.00m², Impact Shield Lite 2.20m²

Manufacturer

HEDS
