Description

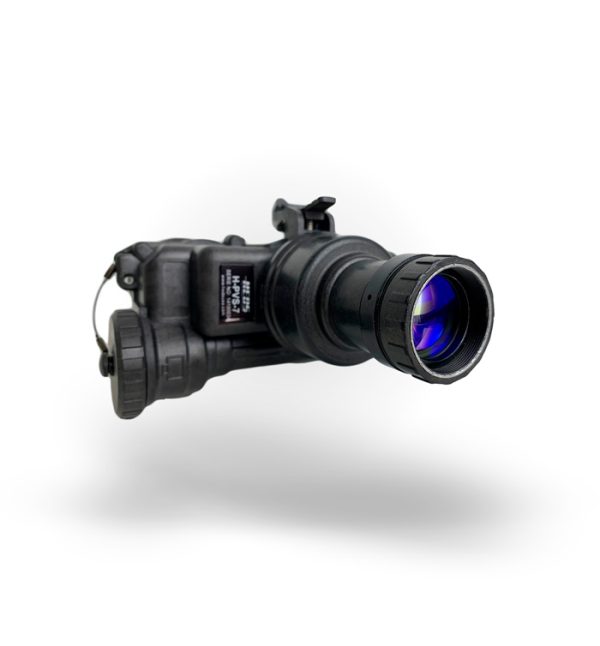

Our H-PVS-7, is a night vision binocular with an objective lens, which can be used by hand or mounted on helmets.
We can build it with different specifications (signal to noise ratio, photocathode, resolution and image intensifier tubes up to 1,600FOM, if exported).
Our H-PVS-14 has water resistant capabilities and uses two AA batteries that last approximately 30 hours of use
Our H-PVS-7 is designed to meet MIL-STD-810G and PREF-49313 standards.
Features
| Magnification | 1x |
|---|---|
| Viewing Angle | 40° |
| Eye Relief | 15mm |
| Distance Focusing Objective Lens | 27mm |
| Objective lens number F | 1.2 |
| Focus Range | 25cma∞ |
| Diopter Adjustment | +2 to -6 |
| Battery | 2xAA |
| Dimensions | 194.5–149mm (without eye rubber) x 157-131mm (center case) x 78mm |
| Weight | 470.5gr |
| Temp. Operational | -51° C a +50° C |
Features Intensifier Tube
| Generation | 3 |
|---|---|
| Option | Auto-Gated |
| Signal to Noise | 19-24 (min) |
| Gain | Ajustable |
| Photocathode | 1350 (min) |
| Halo | No less than .85 |
| FOM | 1,400-1,600 max |
| Resolution | 64-72 lp/mm |
